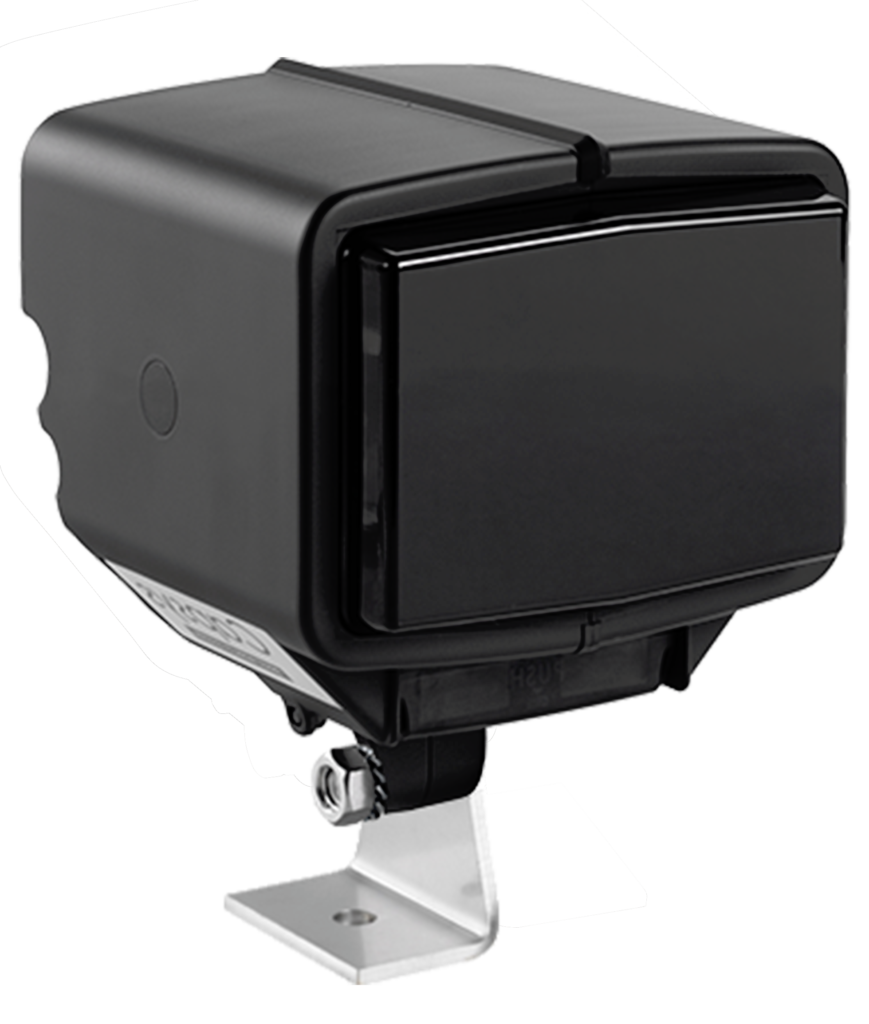

RFZA Radar – R-Flex Range

DISCOVER THE RFZA RADAR: A TARGETED DETECTION ZONE FOR PEDESTRIANS AND CYCLISTS

For what types of applications ?

One product, multiple applications:

• Green signal request

Detect the approach of pedestrians and cyclists to send a green signal request.

• Green phase extension at pedestrian crossings

Detect users already crossing to enable the traffic signal controller to adjust the green phase duration according to their presence.

• Pedestrian and cyclist counting

Use detection data for pedestrian and cyclist counting applications.

Why choose the RFZA?

Reliable, targeted detection with user-friendly configuration !

• Reliable detection – Radar technology designed for pedestrian and cyclist detection, with a range of up to 60 m.
• Defined detection zone – Adjust the length and position of the detection zone to suit your installation.
• Easy configuration – Configure your radar easily from a smartphone using the Cap’Mobile app via Bluetooth.

Principles

CAPSYS is expanding its R-FLEX range with the RFZA, a 24 GHz FMCW radar specifically designed to detect pedestrians and cyclists, supporting traffic signal phase management and pedestrian and cyclist counting.

With its configurable detection zone and a range of up to 60 metres, the RFZA adapts to different intersection layouts and pedestrian crossing configurations.

Key product features

• 1 configurable virtual detection zone
• Detection based on distance, speed and direction
• 2 configurable outputs
• Configuration and maintenance via Bluetooth
• 24 GHz FMCW radar technology
• Configurable channels to minimise interference between radars.
• IP65-rated enclosure suitable for outdoor use

Cap’Mobile : Configure your radar with ease

Use the Cap’Mobile app to configure your RFZA from a smartphone, tablet or Windows PC.

You can adjust the position and length of the detection zone, speed thresholds and direction of movement. Its two configurable digital outputs transmit detection information to connected equipment, including traffic signal controllers

A practical tool that simplifies both installation and maintenance.

En savoir plus sur Cap’Mobile

RFZA Radar – R-FLEX Range

Sales sheet

Notice

Téléchargez la notice (FR / EN – multilingue)

Active Zone Radar, a versatile solution for multiple traffic applications

For what types of applications ?

1 radar, 2 zones, multiple uses

• Micro-regulation
• Green reward signal
• Green request / green hold
• Green extension
• Vehicle counting
• Wrong-way detection

Principles

Thanks to its two configurable and independent zones, the RFZS radar from the R-Flex range is an innovative vehicle detection solution designed to address traffic regulation and lane safety challenges.

With its 24 GHz FMCW technology, the RFZS radar accurately detects vehicle distance, speed, and direction, enabling precise and dynamic management of intersections and regulated zones.

The RFZS radar establishes itself as a reference solution, combining technological performance, flexible usage, and ease of deployment.

Intelligent active zone detection

The RFZS radar features one or two fully configurable detection zones via Cap’Mobile, allowing :

• Precise positioning of the start and end of the zone
• Selection of the target to detect :
  • nearest vehicle
  • farthest vehicle
  • fastest vehicle
• Management of outputs and zones

Detection of incoming, outgoing, or bidirectional traffic

Benefits

• One product, multiple applications
• Improved traffic flow
• Reduced waiting times

Products benefits

• 1 to 2 independent and configurable detection zones
• Accuracy and reliability with 24 GHz FMCW technology
• Quick installation and simplified maintenance
• Multi-radar operation without interference
• Intuitive configuration via the Cap’Mobile app

Learn more about Cap’Mobile

RFZS Radar – R-FLEX Range

Sales sheet

Installation Guide

Download the Installation Guide (FR / EN – multilingual)

Download the Installation Guide – RS485 (FR / EN – multilingual)

Vehicle Presence Detection at the Stop-Line

For what types of applications ?

• Presence detection of vehicles at the stop-line.
• Extension of the green phase
• Green request

Principles

The RFPV radar of the R-FLEX range uses 24 GHz Frequency Modulated Continuous Wave (FMCW) technology to detect approaching all types of vehicles on a roadway, operating on dedicated or mixed tracks.

This new radar functions like a virtual loop. It replaces in-ground magnetic loops (approach loop and presence loop at the traffic light) and eliminates the need for roadworks and maintenance.

It is equipped with two relays, which are activated upon motion detection and/or presence at the stop line.

Two independent functions are activated by default :

• Presence function: detects moving or stationary vehicles at the stop line
• Passage function : detects moving vehicles in all its detection zone

The detection of a vehicle in the presence zone activates a relay. When the vehicle crosses the stop line, the relay switches. If the vehicle is stationary, the relay remains activated until it leaves the zone.

Like the entire range of radars, the new RFPV is fully configurable via the Cap’Mobile application.

Benefits

• No civil engineering work required
• Increased safety for the installer
• Reduced intervention costs
• No maintenance or upkeep needed
• Traffic regulation and congestion reduction

Products benefits

• Compact, non-intrusive product
• Reliable and adaptable detection
• Compatible with all types of vertical/horizontal mounting
• Multiple connection options

• Delivered ready for installation
• Cap’Mobile application
• Easy mounting with built-in installation assistance
• Bluetooth connection without front access to the radar
• Instant configuration, adjustable in real-time
• Intuitive setup of the presence zone, outputs, responsiveness, hold time, forget time, and more

Learn more about Cap’Mobile

The presence radar at the stop line is a high-performance alternative to traditional solutions, offering precision, easy installation, and adaptability to urban environments.

RFPV Radar – R-FLEX Range

Sales sheet

Installation Guide

Download the Installation Guide (FR / EN – multilingual)

Specific detection to active mobility for a safe and fluid shared urban space

For what types of applications ?

• Green or Priority Request
• Green extension on pedestrian crossing or crossroads
• Securing intersections and pedestrian crossings
• Dynamic public lighting
• Triggering of signals subject to speed, direction

Principles

RFSA radars are the Active Mobility version of the new R-FLEX range. They have been designed to have a specific algorithm and a range adapted to the optimal detection of cycles, pedestrians and other personal moving devices (PMD). They are thus designed to integrate and regulate all types of urban travel, for a safe and shared urban space.

Benefits

• Quick and easy installation
• Instant Bluetooth setup & maintenance
• Reliability and adaptability of detection
• No civil work

Products benefits

• Design adapted to detect active mobility
• Settings & maintenance by Cap’Mobile application
• Adjustable range and outputs depending on applications
• Flexible multi-position & multi-part mounting bracket
• Front facing LEDs can be disabled
• Discreet, secure, handy and waterproof connectors
• 100% CAPSYS design
• Integration and high environmental resistance

Learn more about Cap’Mobile

RFSA Radar – R-FLEX Range

Sales sheet

Installation Guide

Download the Installation Guide (FR / EN – multilingual)

Integrated solution for speed measurement with very low power consumption

For which applications ?

• Preventive radars
• Variable – message signs
• Speed measurement

Principles

The RFI radar is the declination of the R-Flex radar range. Small in size, this 24GHz microwave sensor with Doppler effect can be easily integrated into a panel or any other automaton.

Thanks to its reliable and efficient detection, the RFI radar detects all types of vehicles. The speed information is then transmitted to controllers such as variable message signs, preventivel radars or traffic lights.

The RFI radar can be used in many applications to regulate and secure traffic.

Benefits

• Very low power consumption
• Compacte size
• Optimal integration in the panels
• Quick installation
• Easy to configure and parameterise
• Maintenance free

RFI radar

Sales sheet

SIMPLE, SECURE AND ERGONOMIC CONFIGURATION OF ALL YOUR PRODUCTS IN THE TRAFFIC RANGE

Cap’mobile is a management tool for the entire traffic range

Cap’Mobile is the management and configuration tool for all your products in the traffic range (radars and magnetic detectors).

It lets you configure all your products and adjust your settings according to the application. It makes installation, settings and maintenance extremely simple, thanks to its fluid, intuitive operation.

Cap’Mobile management tools

Benefits

High flexibility of use

• Intuitive and ergonomic web and app interface
• All product configuration at a glance
• Instant configuration, securely from anywhere
• Simple & guided product identification / pairing
• Detection test with real time feedback

Simplified maintenance

• Immediate view of the product status
• Quick access to settings and event logs
• Information and launch of local updates

Cap’Mobile

Sales sheet

Multi-application detection for smooth and safe road traffic

For which application ?

• Traffic light Priority Management
• Green light reward
• Triggering signals on detection/warning
• Safety of  intersections or critical areas
• Dynamic public lighting

Principles

The RFSV radars of the R-FLEX range respond to the evolution of road traffic management by adapting to multiple applications combining detection accuracy and speed measurement.

Discreet, ultra compact and urban, these radars are 24GHz doppler-effect microwave sensors for high reliability detection. Its different versions adapt to all types of vehicles thanks to an adjustable range. The speed threshold, the direction of detection and the holding time can also be conditioned according to the applications.

The detection activates a signal to light controllers, warning signs, public lighting equipment, etc. They are fully configurable via the Cap’Mobile app, which gives them great flexibility of use.

Benefits

• Quick and easy installation
• Instant Bluetooth setup & maintenance
• Reliable and adaptable detection
• No civil work

Products benefits

• Settings & maintenance by Cap’Mobile application
• Adjustable range and outputs depending on applications
• Flexible multi-position & multi-part mounting bracket
• Front facing LEDs can be disabled
• Discreet, secure, handy and waterproof connectors
• 100% CAPSYS design
• Integration and high environmental resistance

Learn more about Cap’Mobile

RFSV Radar – R-FLEX Range

Sales sheet

Installation Guides

Download the Installation Guide

Download the Installation Guide – RS485 Connection Version
